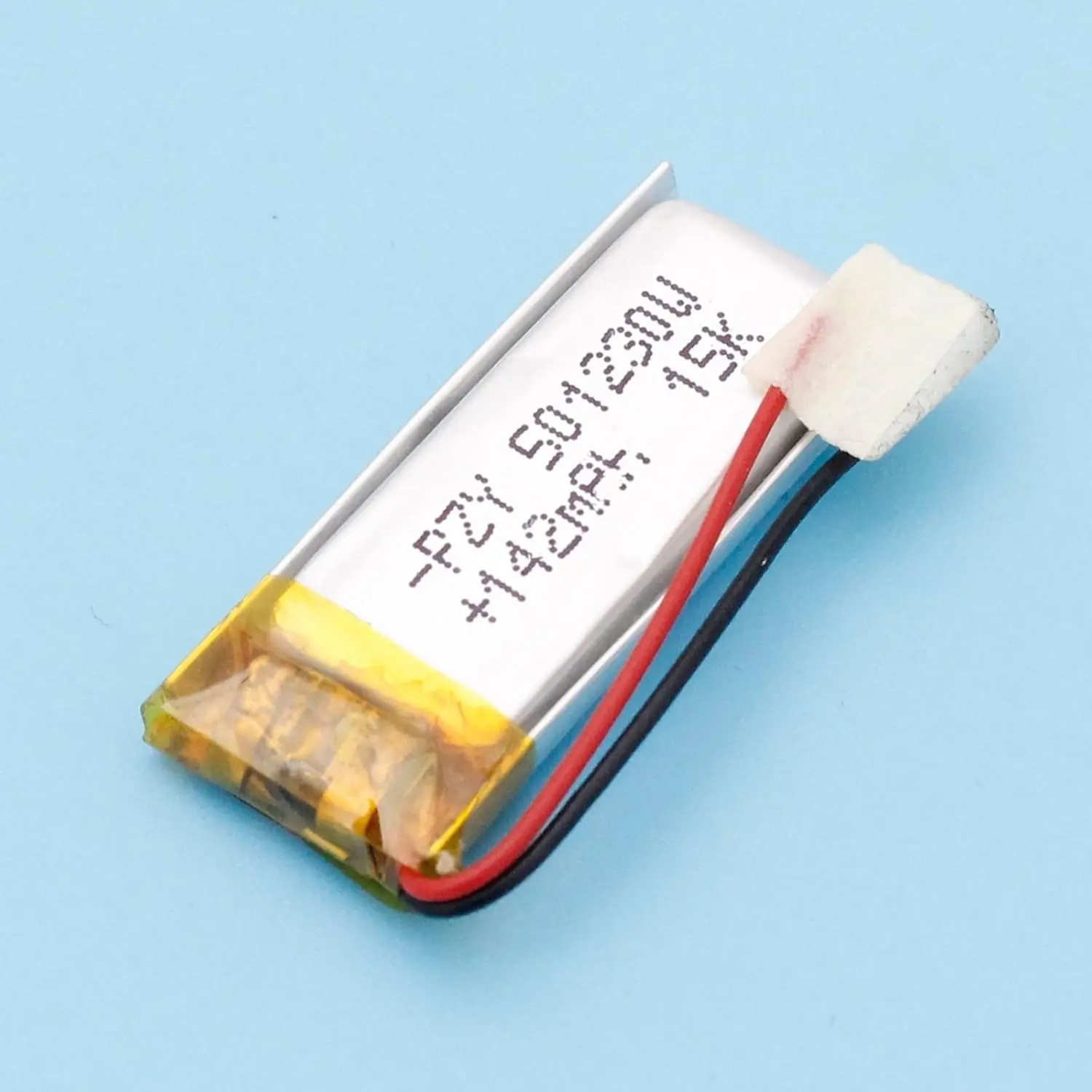

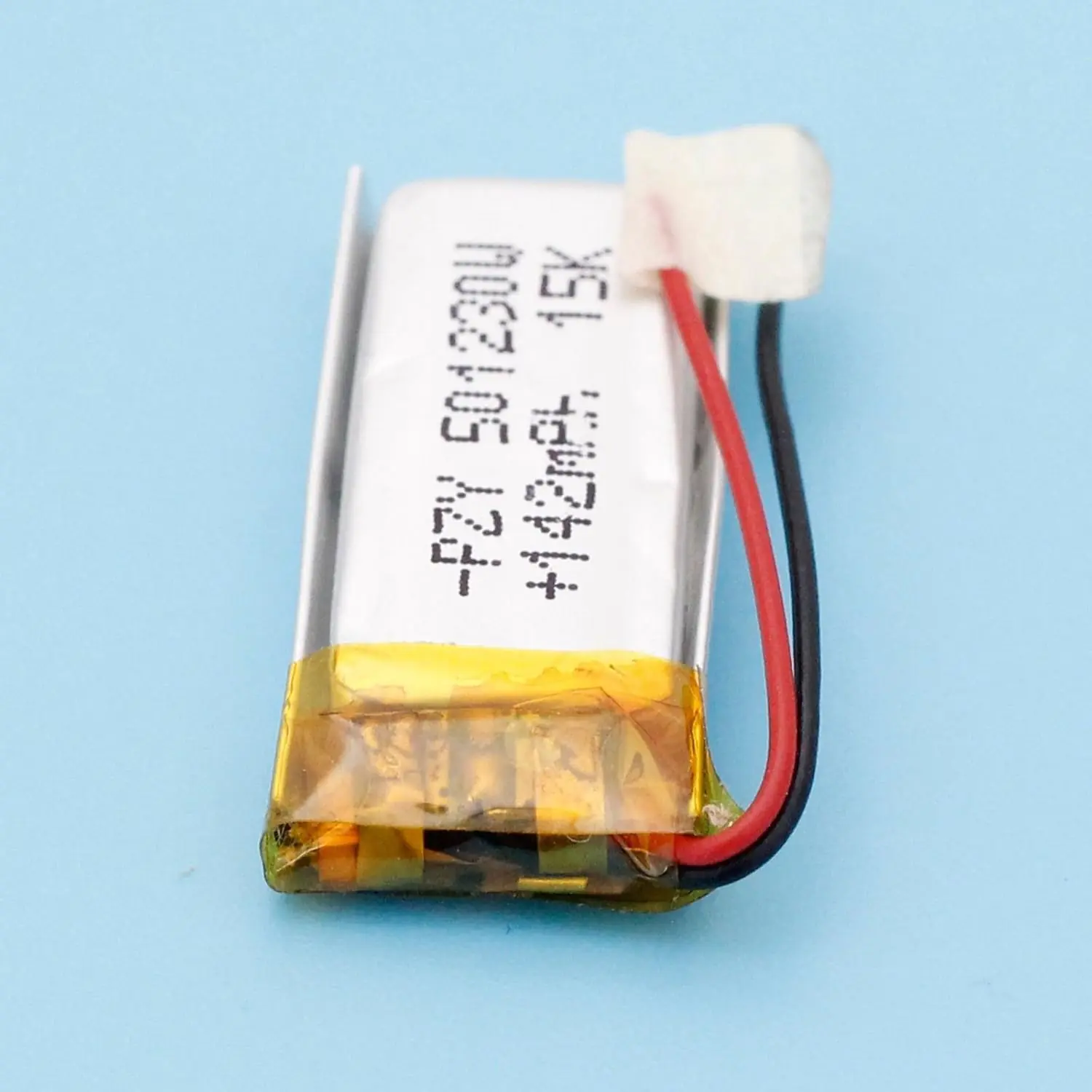

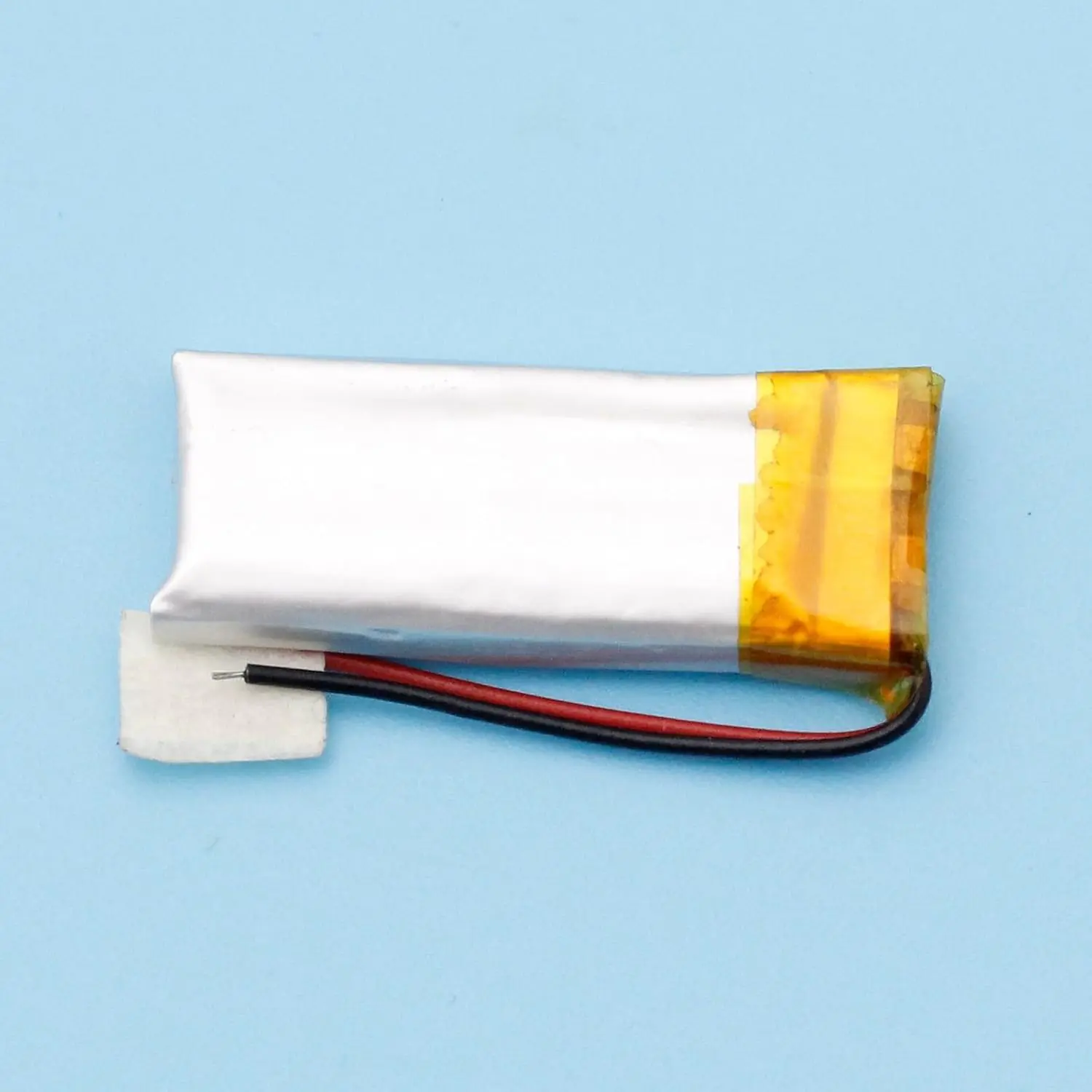

Jeada 2PC 051230 3.7V 150mAh Polymer Lipo Battery with PCM Rechargeable

Description

2Pcs 3.7V 150mAh 051235 Polymer Lipo Battery With PCM Rechargeable
3. 7V Li-Polymer Akku Batterie 150mAh PCM
Rechargeable 051235 für Headset
Parameters: Name: 3.7V lithium polymer batteries/Small cloth
navigator rechargeable batteries Volume: 150mAh
Size:5.0*12*35mm
Voltage:3.7V(nominal) & 4.2V(full voltage)
Description: 1.Battery Lead: 0.1 square red and black line, the line length of about 3-5CM;

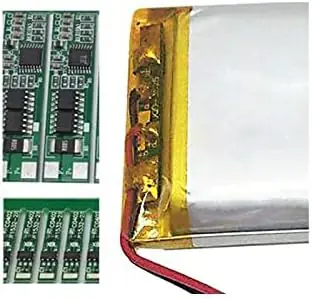

2.Inside with protective board
parameters: charging cut-off voltage of 4.25V, discharge cut-off voltage of 2.75V, allows the maximum current 0.5A, with overcharge, over discharge, short circuit protection board.
Characterist:
1, High discharge platform, the average voltage exceeds 3.7V, low resistance, fast charge time
2, Good security, with over charge protection, over- discharge protection, overcurrent protection
3, The protection IC technical parameters: Overcharge protection voltage
4.20V ± 0.05V 4, Over-discharge protection voltage 2.7V ± 0.1V
5, Over-current protection 3.0 ± 1.0A (2.7V ~ 4.25V) 6, The discharge temperature: -20 ° C ~ + 60 ° C
7,The protection IC parameters: Overcharge protection voltage 4.20V ± 0.05V, over-discharge protection voltage 2.7V ± 0.1V
8, High voltage, high energy density
9, Long cycle life, high safety
10, Shape, size, then the Spirit
11, Self-discharge, pollution
