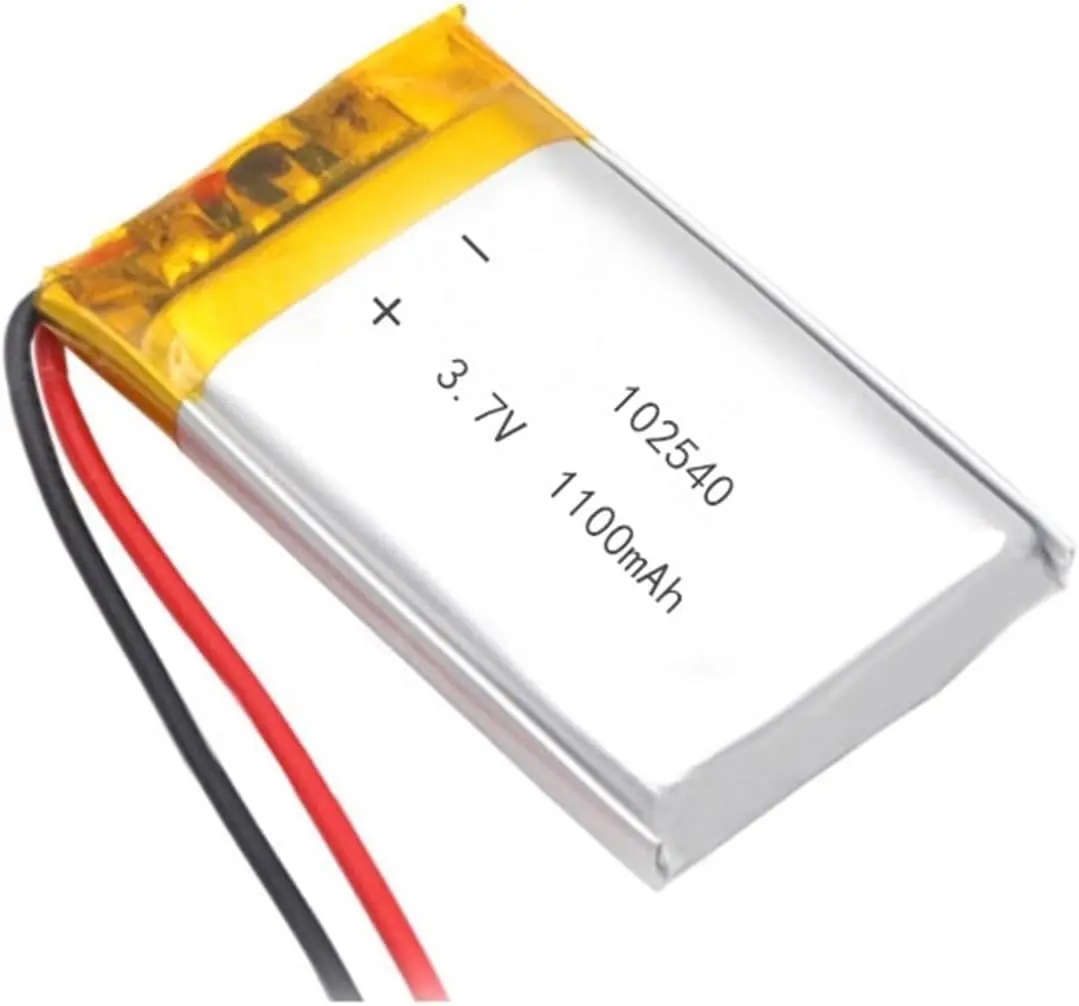

Jeada 1PC 3.7V 1100mAh 102540 Battery Li-ion Li-Polymer with PCM Rechargeable
$12.50

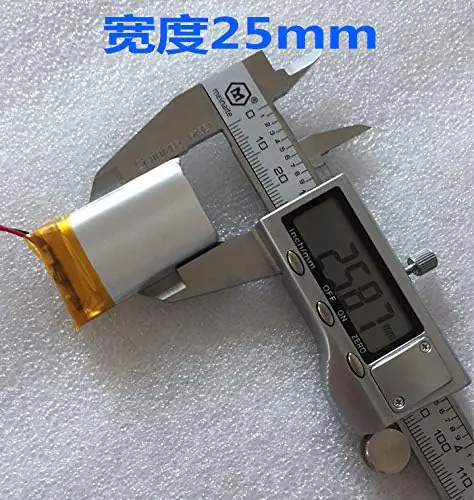

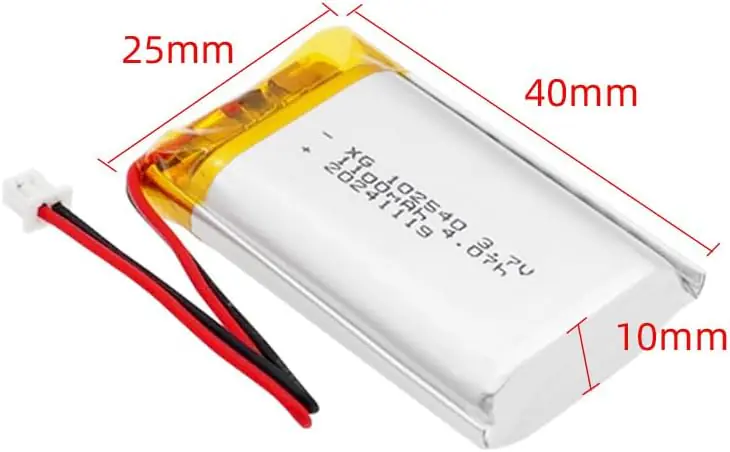

- COMPACT SIZE: Measures 1.57 x 0.98 x 0.39 inches (40x25x10mm), perfect for small electronic devices and portable applications
- BATTERY SPECIFICATIONS: 3.7V lithium polymer rechargeable battery with built-in protection circuit for safe operation
- CONNECTOR TYPE: Comes with a standard 2-pin JST connector with red and black wires for positive and negative terminals
- POWER CAPACITY: Reliable power source for small electronics, featuring consistent voltage output throughout discharge cycle
- DURABLE DESIGN: Robust construction with high-quality polymer cell encased in protective white housing with yellow accent
Description
The product parameters:
100% brand new
High quality and high capacity!

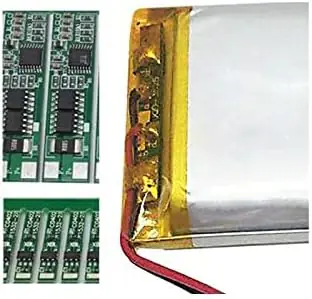

Built-in protection circuit PCM for prevent over charging or over discharging

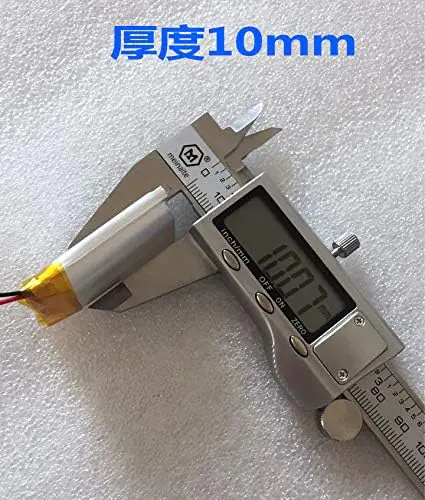

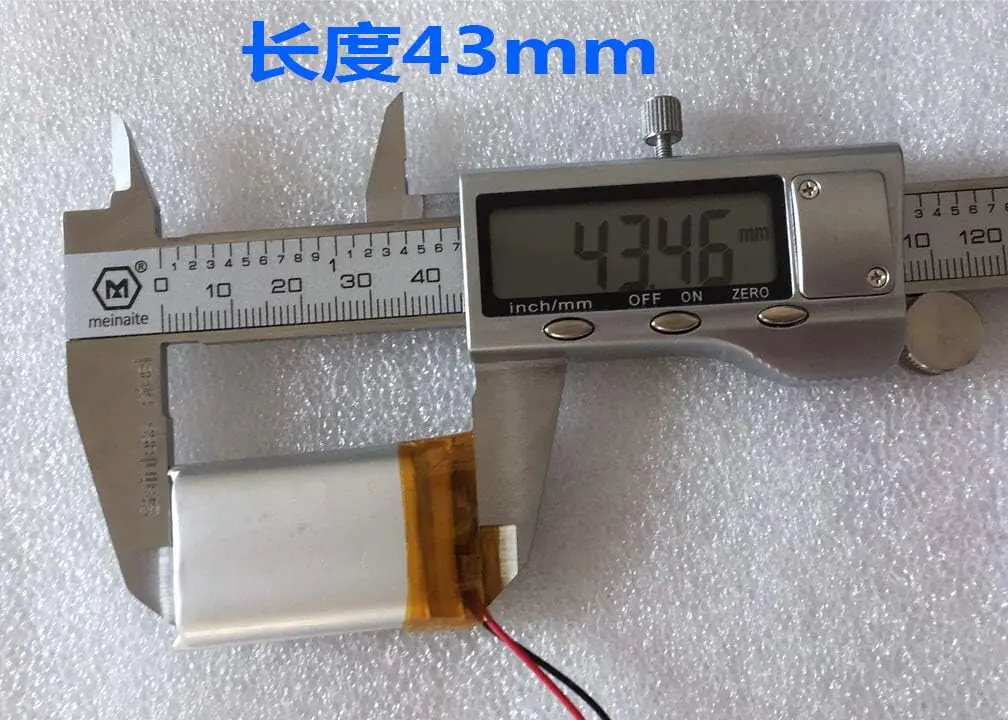

Size: 10mm (H)*25mm (W)*40mm (L)
Rating: DC3.7V 1100mAh
Charging current: standard charging, fast charging: 1.0C: 0.5C
Standard charging method: 0.5C CC (constant current) charge to 4.25V,
then CV (constant voltage 4.2V) charge till charge current is less than or equal 0.05C.
The maximum charge current: 1C Maximum discharge current: 1C
Discharge cut-off voltage: 2.75V
The discharge temperature: -20 degrees C-+60 degrees C
Charging time: 3-7hrs (standard); 3hrs (fast)
Protection function: over charge, over discharge, over current, short circuit protection, over temperature protection It can be recharged repeatedly
Built-in protection circuit PCM for prevent over charging or over discharging.
Package includes:
1PC 3.7V 1100mAh 102540 Battery Li-ion Li-Polymer with PCM Rechargeable
