Jeada 2PC 032050 3.7V 300mAh Polymer Lipo Battery with PCM Rechargeable Battery
$11.50
- This battery is applicable to electronic products with DIY 3.7-5V less than 0.74Wh 200mAh.（★ Not applicable to high-power electric tools and model aircraft）
- Please compare the connector specifications and polarity according to the display diagram before purchasing,★the red wire is the positive “+” and the black wire is the negative “-“，Do not reverse-charge or reverse-connectreverse. ★The primary battery of some products has no plug or mismatched plug or mismatched polarity. It doesn’t matter, you can cut and solder the plug directly or use our heat shrinkable insulating sleeve to connect the same color wire.
- 302035 rechargeable lithium ion polymer battery, nominal voltage 3.7V, full charge voltage 4.2V, capacity 200mAh, power 0.74Wh, ★size 36×20×3mm(1.4×0.787×0.12inch）(L*W*T), Weight:4.4g(0.155oz)，Maximum current:0.2A。 It can prevent overcharge, overdischarge, overcurrent, and short circuit.
- It‘s consists of of large-capacity A+ lithium battery, Japanese Seiko IC overcharge and overcurrent short circuit protection board, 3302-26 high temperature resistant silicone cable, and genuine JST Pitch 1.25mm ★2 wire connector module.
- If there are any quality issues within a year, ★please feel free to contact us via email for replacement.
Description
The product parameters:
Product name: A product 3.7V lithium polymer battery
Product volume: 300mAh

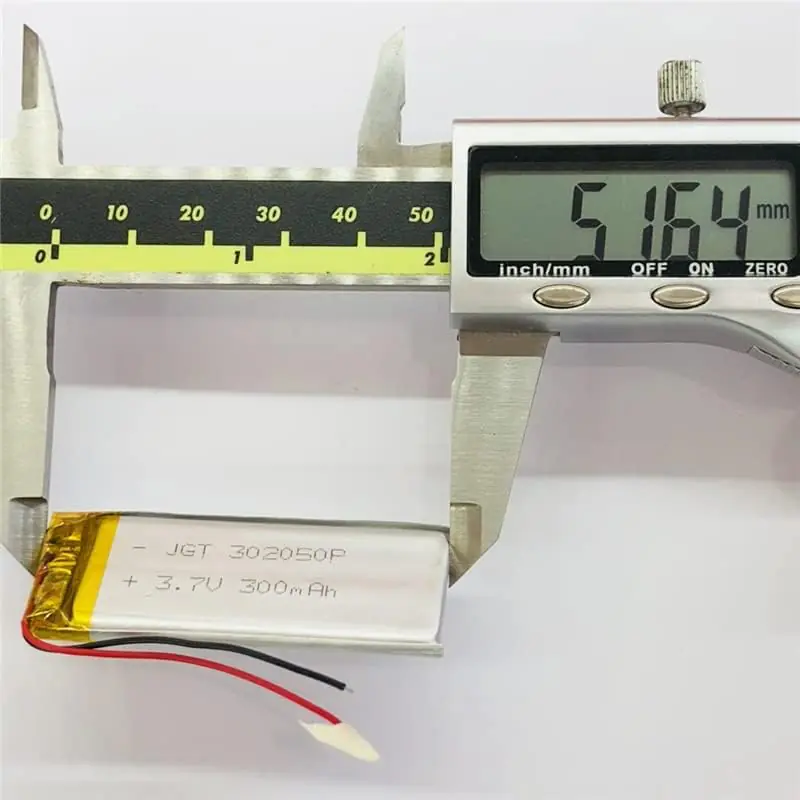

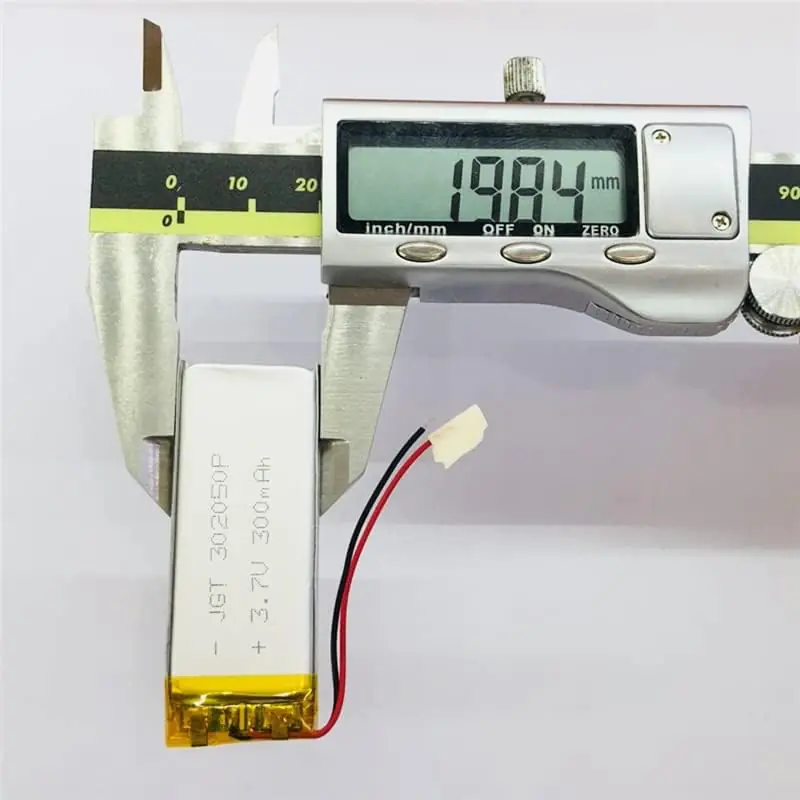

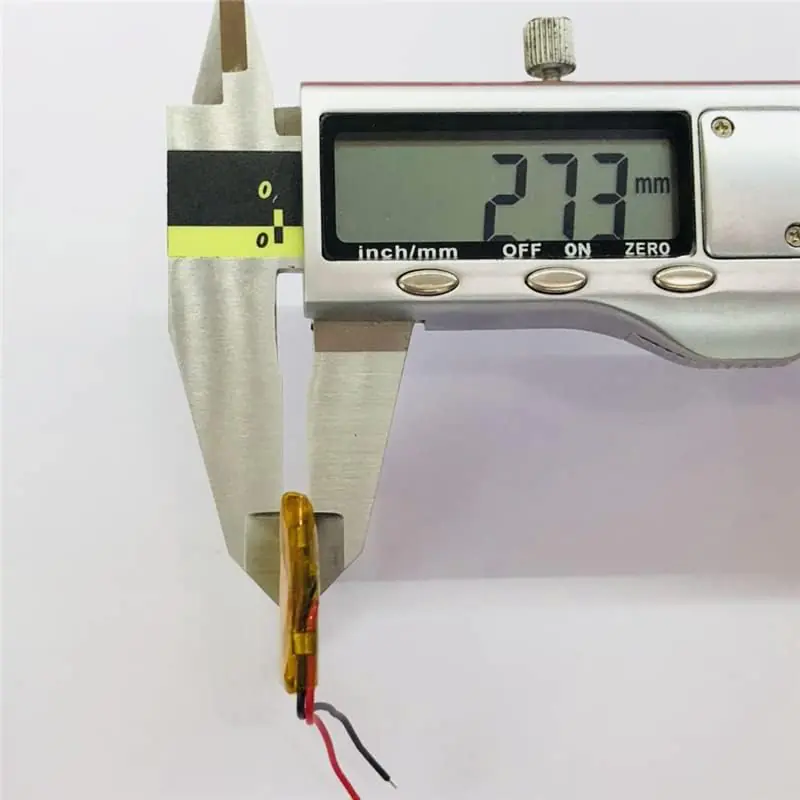

Product size: Thickness(± 0.5)xWidth(± 2)xLength(± 3)(mm)，3*20*50mm
Product voltage:3.7V(nominal) & 4.2V(full voltage)
Product description:
1.Battery Lead: 0.1 square red and black line, the line length of about 2-5CM;

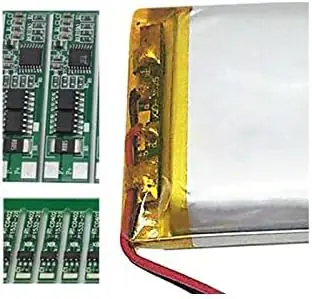

2.Inside with protective board parameters: charging cut-off voltage of 4.25V, discharge cut-off voltage of 2.75V, allows the maximum current 0.5A, with overcharge, over discharge, short circuit protection board.
Characterist:
1, High discharge platform, the average voltage exceeds 3.7V, low resistance, fast charge time
2, Good security, with over charge protection, over-discharge protection, overcurrent protection
3, The protection IC technical parameters: Overcharge protection voltage 4.20V ± 0.05V
4, Over-discharge protection voltage 2.7V ± 0.1V
5, Over-current protection 3.0 ± 1.0A (2.7V ~ 4.25V)
6, The discharge temperature: -20 ° C ~ + 60 ° C
7,The protection IC parameters: Overcharge protection voltage 4.20V ± 0.05V, over-discharge protection voltage 2.7V ± 0.1V
8, High voltage, high energy density
9, Long cycle life, high safety
10, Shape, size, then the Spirit
11, Self-discharge, pollution
12. Application: LED light，MP3 / MP4, mobile phone small toys, cameras and video camera and other digital products.
Package includes:
2PC 032050 3.7V 300mAh Polymer Lipo Battery with PCM Rechargeable
