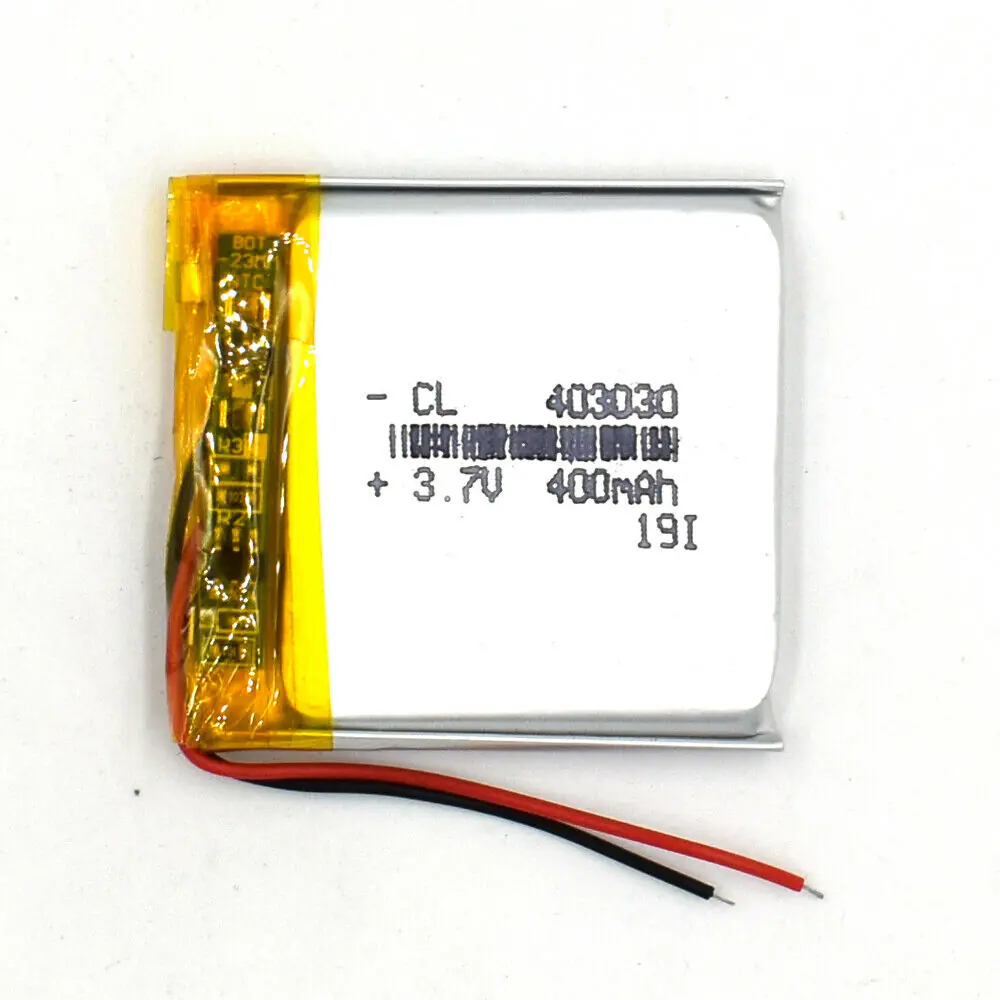

Jeada 2PCS 403030 3.7V 400mAh Polymer Battery with PCM Rechargeable Battery

Description

The product parameters:<br>
Product name: A product 3.7V lithium polymer battery<br>
Product volume: 400mAh<br>

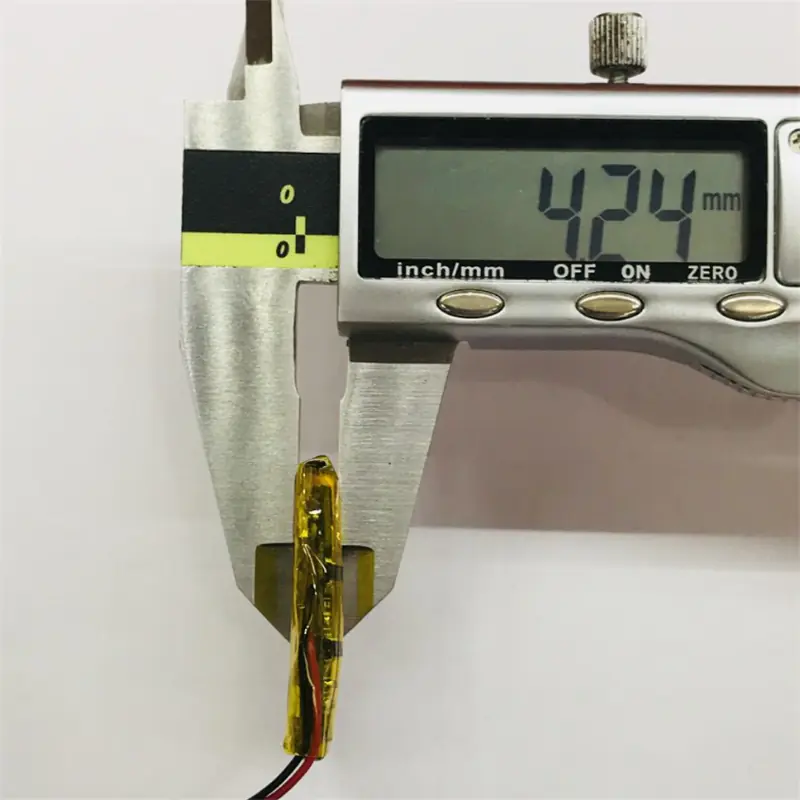

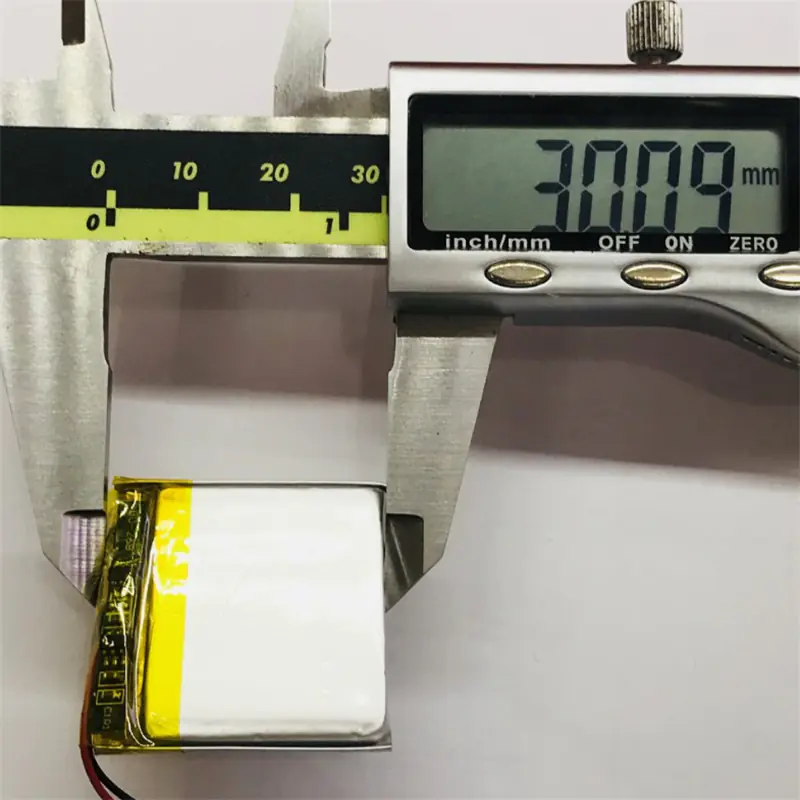

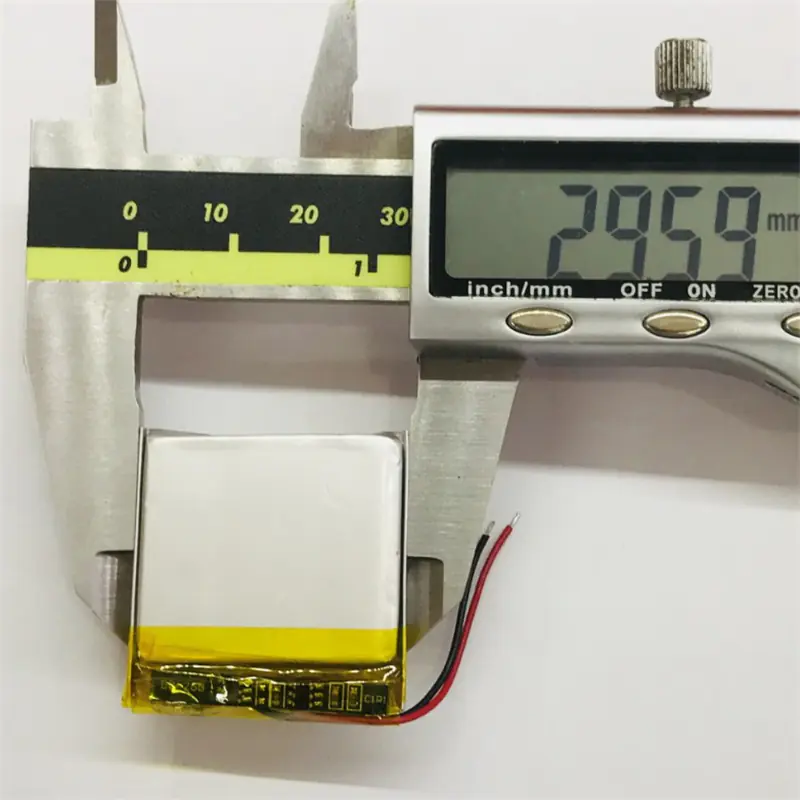

Product size: Thickness(± 0.5)xWidth(± 1.5)xLength(± 1.5)(mm)，4*30*30mm<br>
Product voltage:3.7V(nominal) & 4.2V(full voltage)<br>
Product description:<br>
1.Battery Lead: 0.1 square red and black line, the line length of about 2-5CM;<br>

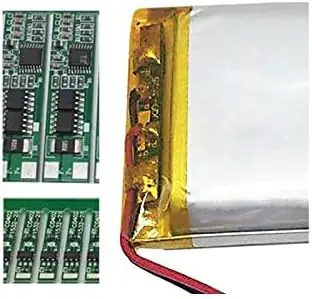

2.Inside with protective board parameters: charging cut-off voltage of 4.25V, discharge cut-off voltage of 2.75V, allows the maximum current 0.5A, with overcharge, over discharge, short circuit protection board.<br>
Characterist: <br>
1, High discharge platform, the average voltage exceeds 3.7V, low resistance, fast charge time<br>
2, Good security, with over charge protection, over-discharge protection, overcurrent protection<br>
3, The protection IC technical parameters: Overcharge protection voltage 4.20V ± 0.05V <br>
4, Over-discharge protection voltage 2.7V ± 0.1V<br>
5, Over-current protection 3.0 ± 1.0A (2.7V ~ 4.25V)<br>
6, The discharge temperature: -20 ° C ~ + 60 ° C <br>
7,The protection IC parameters: Overcharge protection voltage 4.20V ± 0.05V, over-discharge protection voltage 2.7V ± 0.1V<br> 8, High voltage, high energy density<br>
9, Long cycle life, high safety<br>
10, Shape, size, then the Spirit <br>
11, Self-discharge, pollution <br>
12. Application: LED light，MP3 / MP4,earphone， mobile phone small toys, cameras and video camera and other digital products.<br>
Package includes:<br>
